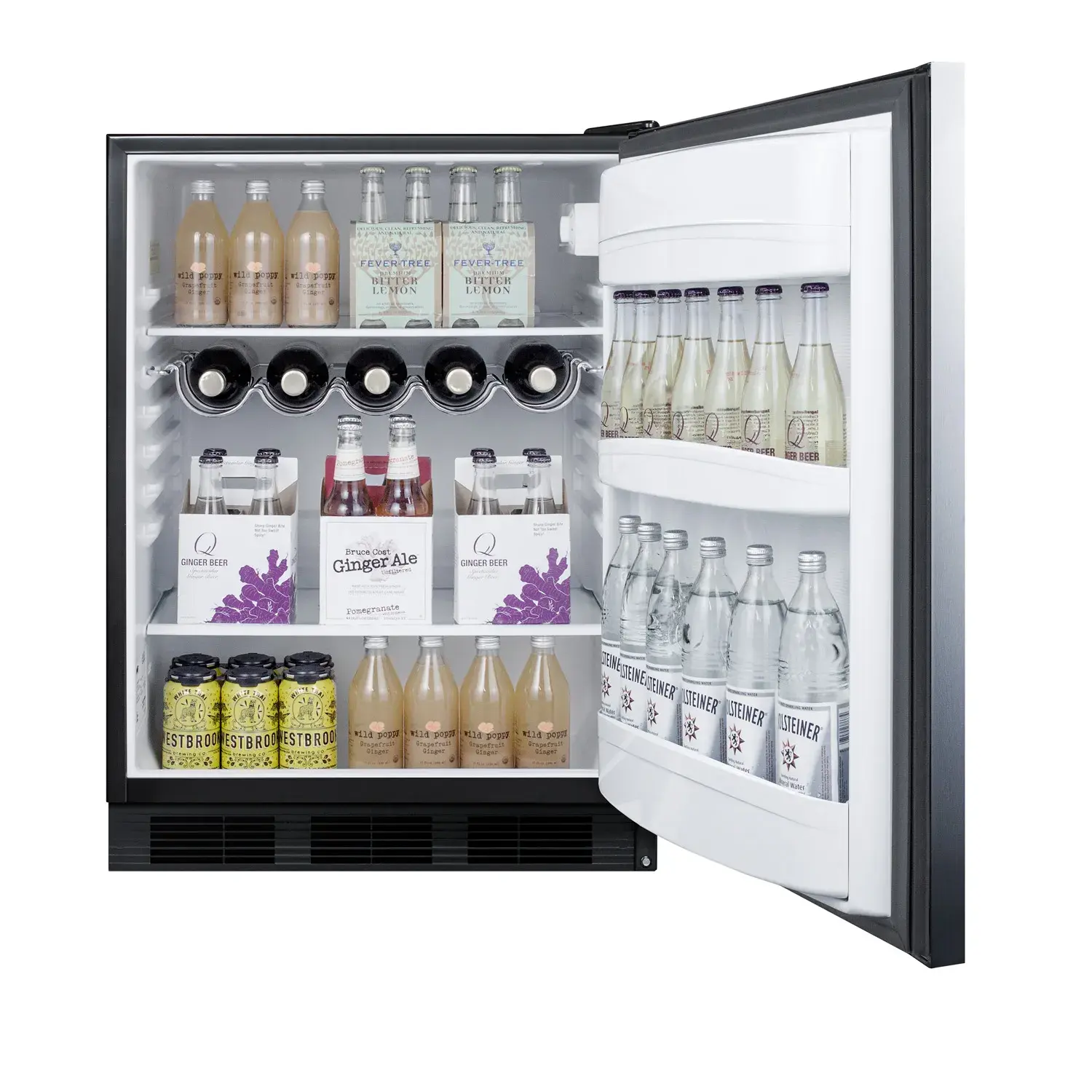

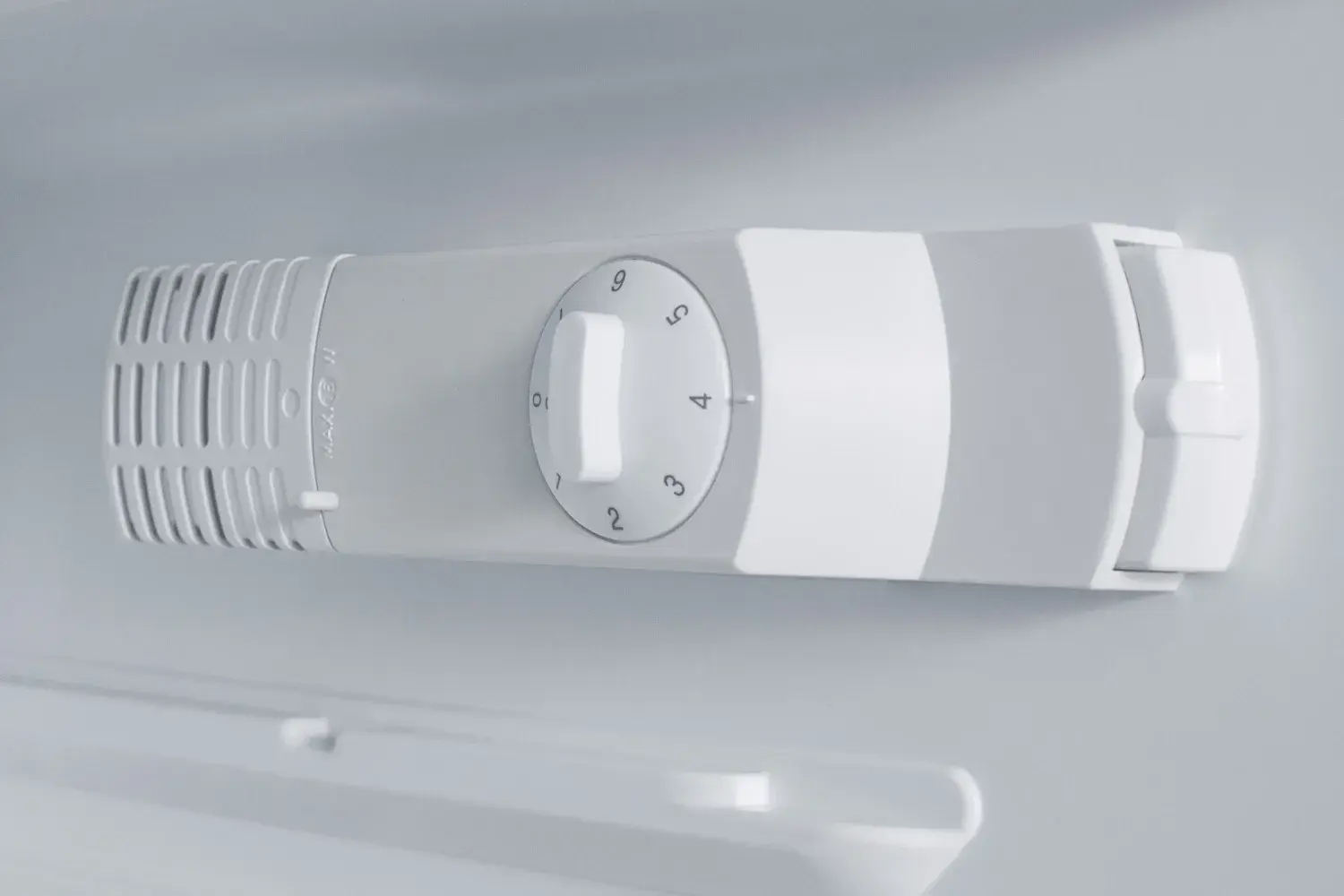

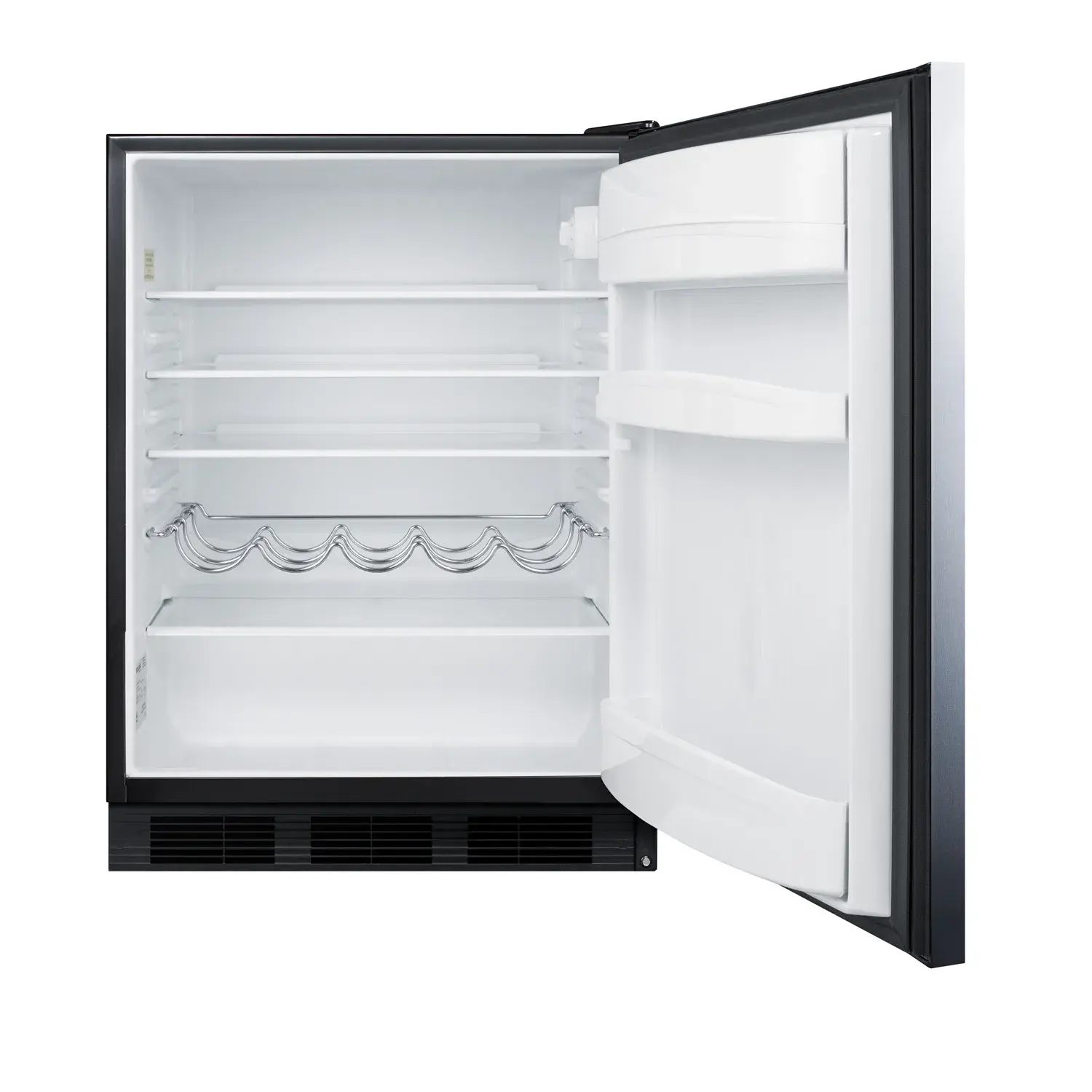

SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a pre-installed stainless steel handle in a sleek 14mm diameter mounted horizontally across the top of the door. Inside, the AR5BS utilizes automatic defrost operation to ensure minimum user maintenance. The 5.5 cu.ft. interior offers more storage space than most models in this size class. Adjustable glass shelves ensure spill-proof storage, with a removable scalloped wine shelf ideal for keeping bottles in place. The door includes three storage racks for condiments and tall bottles. The white interior offers easy visibility, with an automatic light included. The AR5BS features Summit's intuitive dial thermostat for easy temperature management. Designed and constructed in Europe, the AR5BS brings reliable cold storage to any setting in need of a quality refrigerator in an ADA compliant height. For a panel-ready version of this unit, see the AR5IF.
Capacity:5.5 cu.ft. (156 L)
Width:24.0" (61 cm)
Height:32.0" (81 cm)
Depth:23.0" (58 cm)
Cabinet:Black
Door:Stainless Steel
Defrost Type:Automatic
Door Swing:RHD
Thermostat Type:Dial
Voltage/Frequency:115 V AC/60 Hz
Parts & Labor Warranty:1 Year
Nominal Height:32.0" (81 cm)
Height of Cabinet:32.0" (81 cm)
Height to Hinge Cap:32.25" (82 cm)
Nominal Width:24.0" (61 cm)
Width:23.63" (60 cm)
Nominal Depth:23.0" (58 cm)
Depth:23.0" (58 cm)
Depth with door at 90°:45.38" (115 cm)
Capacity:5.5 cu.ft. (156 L)
Defrost Type:Automatic
Door:Stainless Steel
Cabinet:Black
US Electrical Safety:ETL
Canadian Electrical Safety:ETL-C
Energy Usage/Year:307.0kWh/year
Amps:1.4
Voltage/Frequency:115 V AC/60 Hz
Weight:100.0 lbs. (45 kg)
Parts & Labor Warranty:1 Year
Compressor Warranty:5 Years
UPC:761101068268
Door Swing:RHD
Reversible:Yes
Shelf Type:Glass
Shelf Qty:3
Full Door Shelf Qty:3
Adjustable Shelves:Yes
Wine Bottle Shelves:Yes
Thermostat Type:Dial
Fan Type:Exterior
Refrigerant Type:R600a
Refrigerant Amount:0.64oz.
High Side PSI:180.0
Low Side PSI:80.0
Interior Light:Yes
Interior Height:26.25" (67 cm)
Interior Width:21.0" (53 cm)
Interior Depth:18.0" (46 cm)
Compressor Step Height:5.5" (14 cm)
Compressor Step Width:21.0" (53 cm)
Compressor Step Depth:6.0" (15 cm)

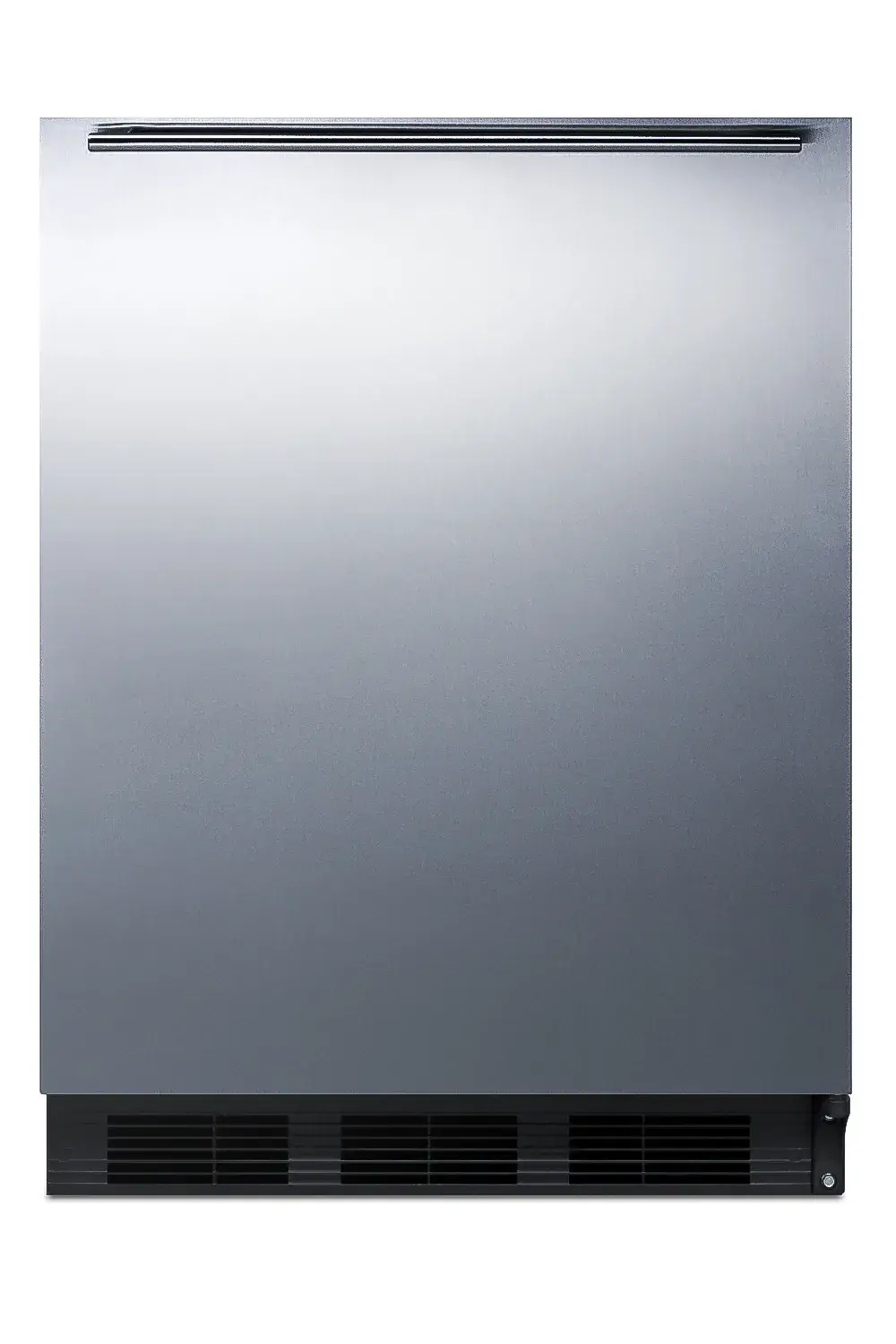

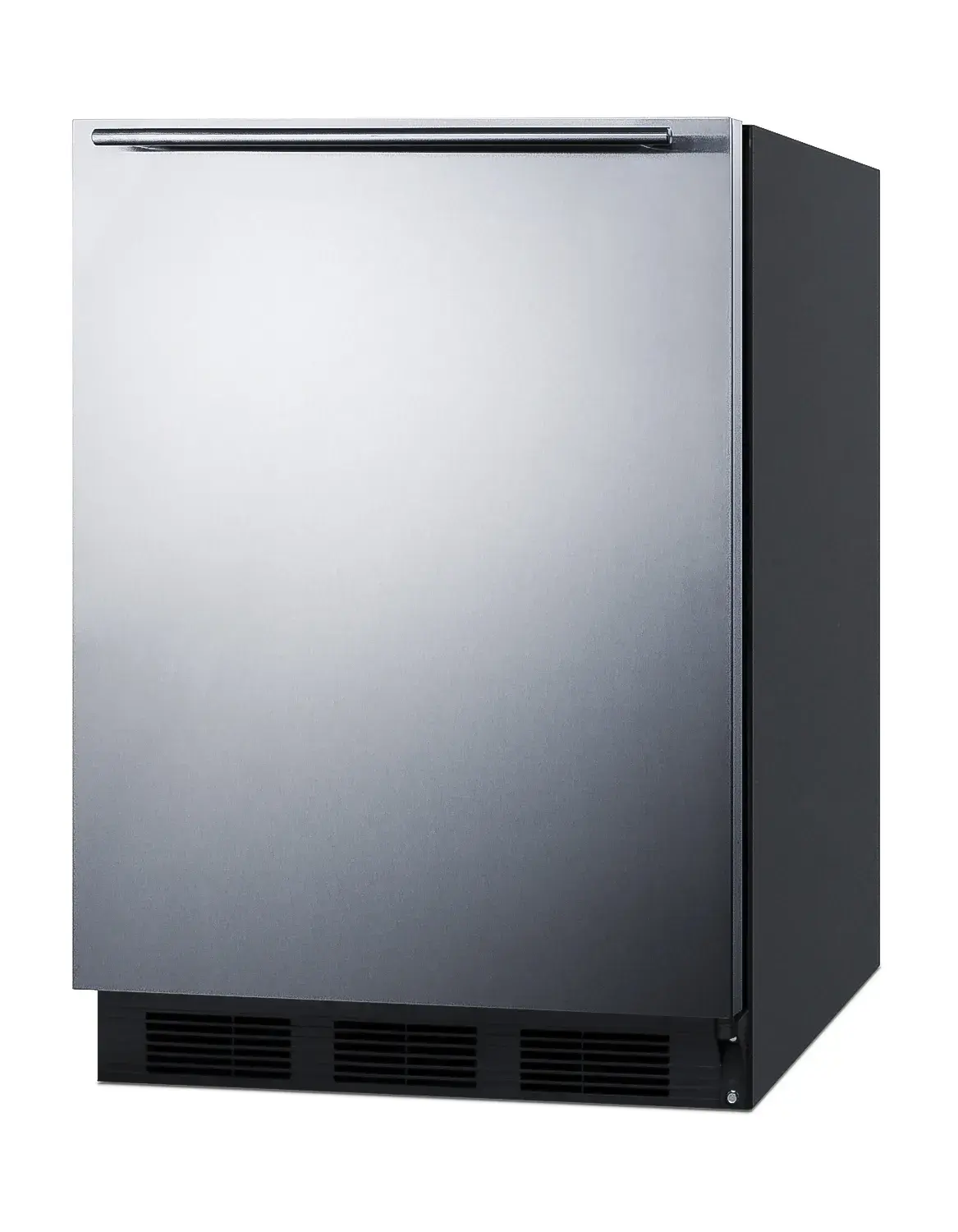

Summit AR5BS 24" Wide Built-In All-Refrigerator, ADA Compliant
$1,608.82SUMMIT offers the industry’s largest selection of ADA compliant built-in undercounter refrigeration, with a range of choices to best meet the needs of any home or facility with height limitations. Sized with a 24” footprint and 32” height, the AR5BS is an all-refrigerator with a front-breathing system that allows built-in installation under lower ADA compliant counters. The fully finished cabinet also enables freestanding use. This model comes with a black cabinet finish and reversible stainless steel wrapped door. It includes a pre-installed stainless steel handle in a sleek 14mm diameter mou
